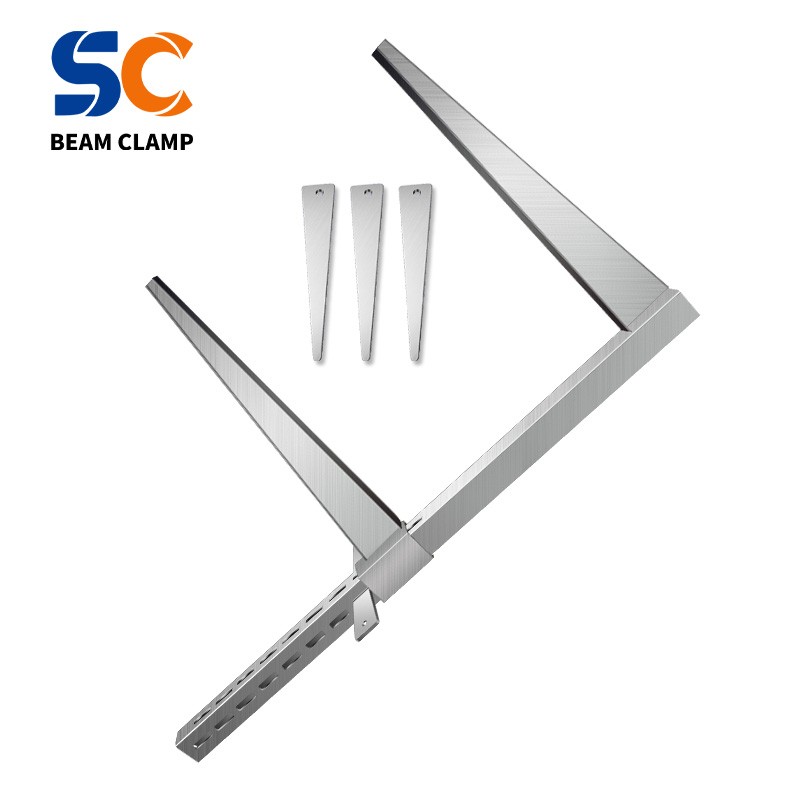

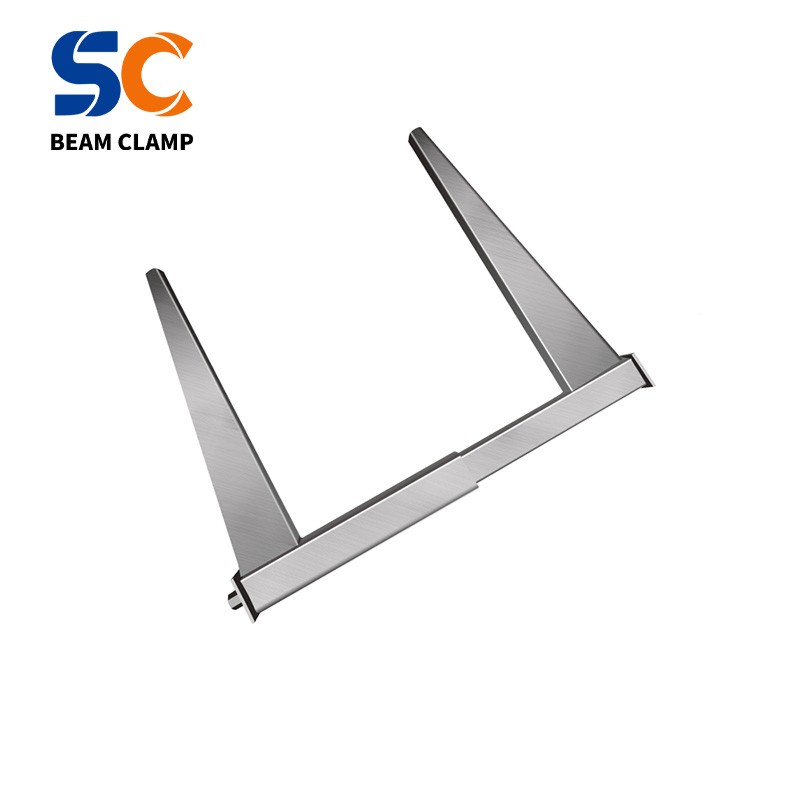

  • Our beam clamp is an engineered clamping solution designed to provide a secure, efficient way to connect steel structures without the need for on-site drilling or welding, making it ideal for secondary steel connections in construction, industrial, and infrastructure projects worldwide. Crafted with high-quality materials and precision engineering, this beam clamp offers both permanent and temporary connection options, allowing for flexible on-site adjustments to meet diverse project requirements. It is compatible with a wide range of steel sections, eliminating the need for custom fabrication and ensuring a versatile solution for various steel-to-steel connection scenarios. Whether used in commercial buildings, industrial facilities, or infrastructure projects, our beam clamp delivers reliable performance, easy operation, and long-lasting durability, making it a preferred choice for contractors, engineers, and construction professionals.



  • Our beam clamp is manufactured from high-grade ductile iron that complies with BS EN 1563 standards, ensuring exceptional strength and load-bearing capacity. It features a hot-dip galvanized finish in accordance with BS EN ISO 1461, providing superior corrosion resistance and eliminating the need for post-installation touch-ups or additional protective treatments. The clamp is designed with a 5:1 safety factor, ensuring reliable performance and peace of mind in every application, with no on-site testing required. It accommodates flange thicknesses ranging from 70mm to 355mm (depending on the model) and supports safe working loads (SWL) from 1000kg to 10000kg, making it suitable for both light-duty and heavy-duty applications. The clamp uses standard M8 to M24 bolt sizes, with recommended torque values ranging from 10Nm to 290Nm (varies by bolt diameter), and can be installed using simple hand tools or semi-skilled labor, no specialist equipment or skills needed. It is approved by third-party organizations including Lloyds Register and DIBt, ensuring compliance with international safety and quality standards for tensile and frictional applications.





  • Our beam clamp offers numerous advantages that streamline installation, reduce costs, and enhance safety for construction projects of all sizes. First and foremost, it eliminates the need for on-site drilling or welding, which not only saves valuable installation time but also avoids damaging the protective coatings on existing steel structures, ensuring long-term structural integrity and reducing maintenance needs. The absence of welding means no heat or sparks are generated, eliminating the requirement for hot work permits, reducing administrative time, and making it safe for use in hazardous environments. Installation is simple and efficient, requiring only semi-skilled labor and basic hand tools, which reduces labor costs and eliminates the need for expensive specialist equipment or training. The clamp’s adjustable design allows for on-site re-alignment of steel members, eliminating remedial work due to misalignment and providing greater flexibility in project execution. With its hot-dip galvanized finish and high-quality materials, it offers exceptional corrosion resistance, ensuring a long service life that matches the steel it clamps, reducing replacement costs and ensuring long-term reliability. Additionally, it provides a guaranteed connection every time, with no reliance on the skills of the installer, and is approved by third-party organizations, giving you confidence in its performance and safety. Its versatile design fits most steel sections, serving as a one-stop solution for steel-to-steel connections and reducing sourcing costs for users.
