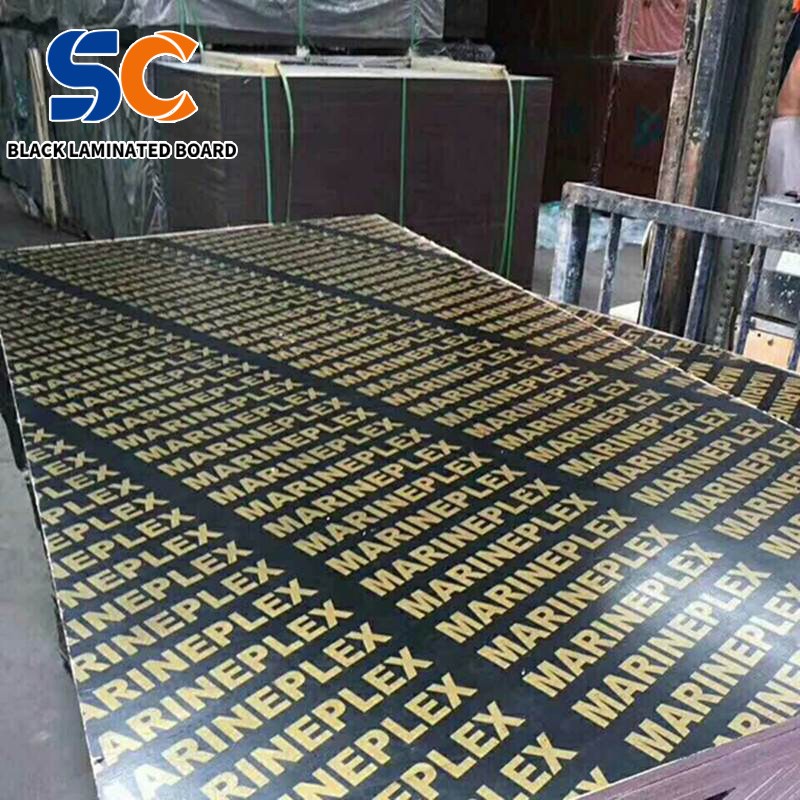

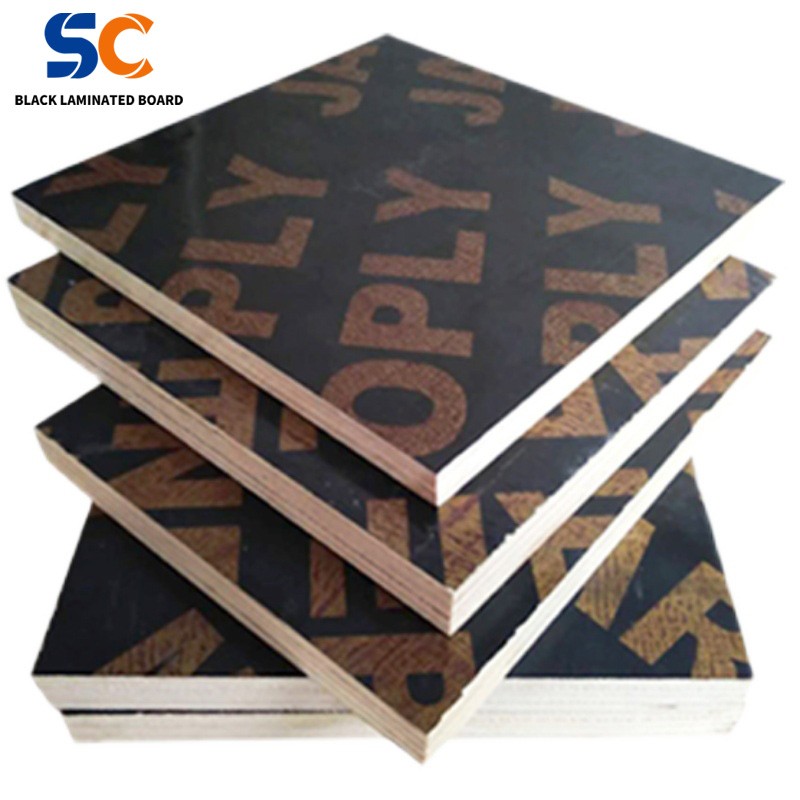

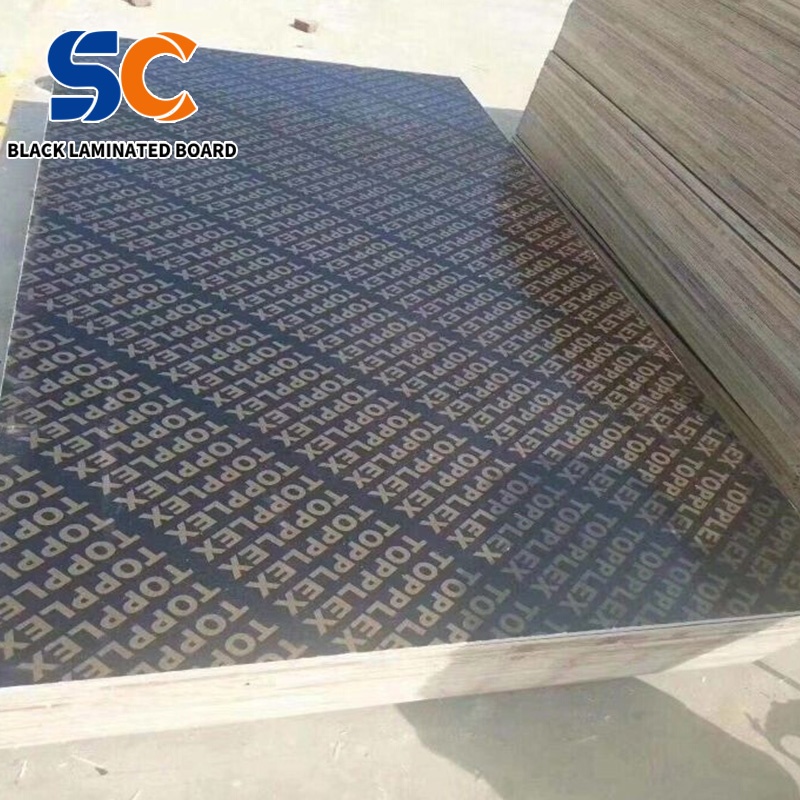

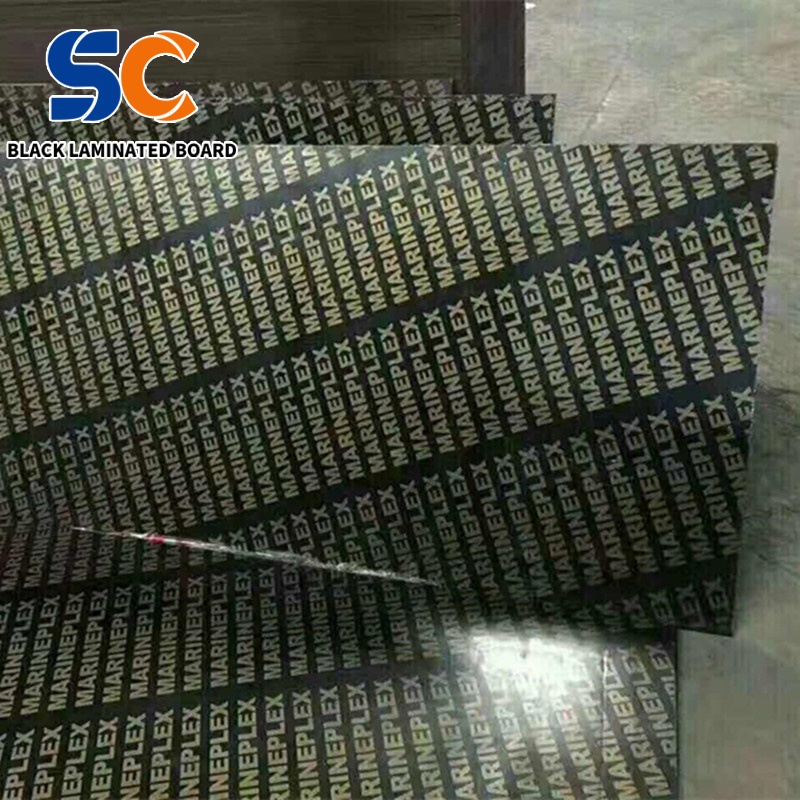

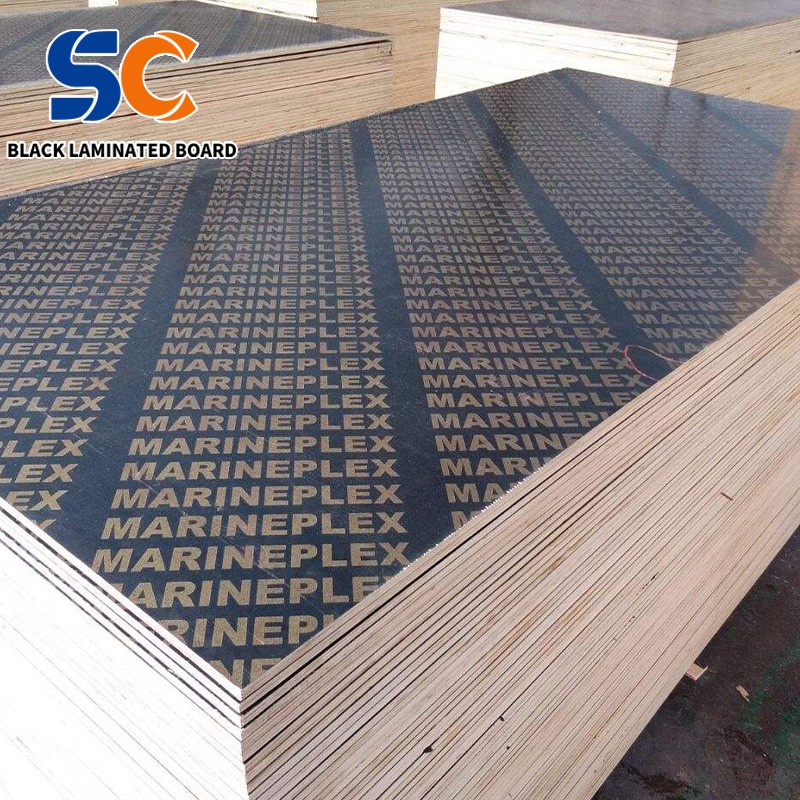

Our black film faced plywood is a high-performance, multi-purpose construction material engineered for durability, versatility, and reliability in various industrial and building applications. Made from high-quality wood veneers (poplar, birch, or eucalyptus core) bonded with premium waterproof adhesive, it features a sleek black phenolic film surface that enhances its overall performance and aesthetic appeal. This plywood is specifically designed to meet the rigorous demands of concrete formwork, shuttering, heavy-duty flooring, and outdoor construction projects, making it a top choice for contractors, builders, and industrial buyers worldwide. Unlike ordinary plywood, our black film faced plywood boasts exceptional moisture resistance, abrasion resistance, and easy demolding properties, ensuring long-term usability and cost-effectiveness in both indoor and outdoor environments. It is available in standard sizes and can be customized to fit specific project requirements, catering to a wide range of application needs from high-rise buildings and bridges to truck flooring and warehouse platforms.
The black film faced plywood is manufactured using advanced hot-pressing technology and strict quality control standards to ensure consistent performance and structural integrity. The core material is selected from high-density wood veneers, including poplar, birch, eucalyptus, or mixed core, which are cross-laminated to enhance stability and prevent deformation. The surface is covered with a high-quality black phenolic resin film, which is bonded to the core through high temperature and pressure to form a seamless, protective barrier. The adhesive used is WBP (Water Boil Proof) phenolic resin glue, ensuring excellent water resistance and preventing delamination even in harsh weather conditions or prolonged exposure to moisture.
Key technical parameters include a density range of 550-750 kg/m³ and a moisture content of 8%-12%, ensuring dimensional stability and durability. The thickness ranges from 9mm to 30mm, with a thickness tolerance of ±0.3-0.5mm and flatness error of ≤0.1mm/m², meeting high-precision splicing requirements for formwork applications. The black phenolic film has a thickness of 0.3-0.5mm, providing superior abrasion resistance and chemical resistance, capable of withstanding temperatures up to 120°C and remaining stable in a pH range of 3-11. The plywood is certified by FSC, CE, CARB, and ISO 9001, ensuring compliance with global quality and environmental standards.
Our black film faced plywood offers numerous advantages that make it stand out from ordinary plywood and other construction materials. Firstly, it features exceptional water and weather resistance, thanks to the WBP adhesive and phenolic film coating, which prevent moisture infiltration, mold growth, and delamination even in extreme temperature and humidity environments (-20°C to 80°C). This makes it ideal for outdoor construction, marine applications, and areas exposed to water, such as bathrooms and kitchens.
Secondly, it delivers superior durability and reusability, with a reuse cycle of 20-50 times (depending on handling and maintenance), significantly reducing project costs compared to single-use materials. The smooth black phenolic surface ensures easy demolding when used for concrete formwork, eliminating the need for additional release agents and resulting in a high-quality, smooth concrete finish that requires minimal post-processing.
Additionally, the plywood boasts high structural strength and load-bearing capacity, with a bending strength exceeding 30 MPa and the ability to withstand lateral pressures up to 35 kN/m², making it suitable for heavy-duty applications like truck flooring, warehouse platforms, and large-scale concrete formwork. It is also chemical-resistant, able to withstand acids, alkalis, and common construction chemicals, ensuring longevity in industrial environments. The sleek black appearance adds an aesthetic appeal, making it suitable for decorative applications such as wall panels, furniture, and interior design elements. Furthermore, it is eco-friendly, made from sustainably sourced wood and compliant with environmental standards, appealing to environmentally conscious buyers.
